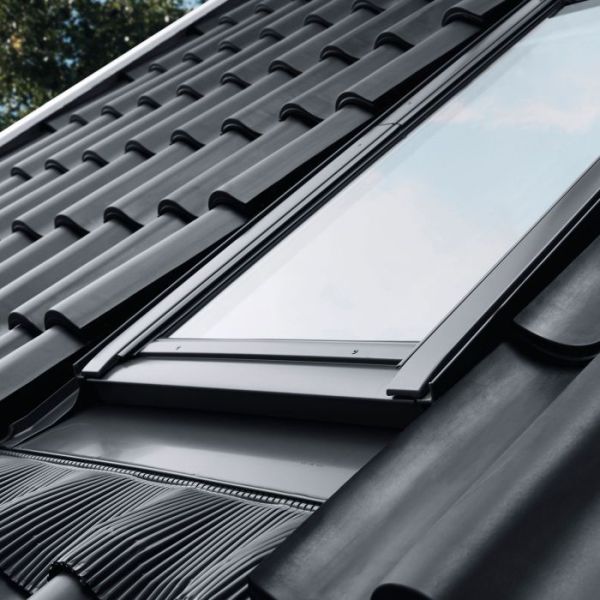

VELUX EDJ CK02 0000 Recessed Tile Flashing 55x78cm

VELUX flashing kit for recessed installation of roof windows into tiles up to 90mm in profile.

Recessed installations offer a more sleek, streamlined appearance, sitting 40mm deeper in the roof structure. Recessed installations also offer greater energy efficiency, and when installed with the appropriate VELUX insulation collar actually offer a lower certified u-value, saving energy and providing architects with greater design flexibility.

• Provides a sleek and streamlined finish as the window is installed lower in the roof
• Same brackets used for recessed and standard installation heights
• Suitable for roof pitches between 20-90°
• Suitable for tiles up to 90mm in profile
• Also suitable for interlocking slate

Features

• Installation - VELUX flashings are easy to install. A perfect and discreet installation is ensured in the roofing material. The roofing material conseals the top and side flashing components
• Materials - VELUX exterior flashings are manufactured in corrosion proof materials. The colours of the materials match the cladding of the roof window. A thoroughly tested construction and composition of materials ensures a complete and weather-resistant flashing
• Weather-tight - The flashing components overlap each other to create weather tight joints whilst the foam gasket creates a seal between the flashing and the roofing materials. Apron - In profiled roofing material the pleated apron is dressed to form a tight seal
• Water drainage - The construction of the flashings ensures safe drainage of water from the roof above the window
• Maintenance - Leaves and other debris should be removed from any flashing once a year to allow rainwater to run freely. Heavy snow should not be allowed to lie on the flashing for long periods of time
• Warranty - 10 year VELUX warranty on all flashing products
